Galvanized T-Type Steel Ground Rod with Connection Lug
The galvanized T-type steel ground rod is a solid metallic earth electrode designed to provide a conductive connection between an electrical earthing system and the surrounding soil. It is driven or installed vertically into the ground and connected to an earthing conductor, grounding strip or bonding cable through a welded lug, bolted terminal or other approved connection component.
The product is manufactured from solid carbon-steel rod with a pointed lower end for easier soil penetration. Available configurations include a T-shaped upper section, plain round top, flattened connection end and welded side lug. The correct structure must be selected according to the installation method and approved grounding-system drawing.
Galvanized steel construction provides mechanical strength and corrosion protection for general utility and infrastructure grounding applications. The required rod length, diameter, zinc-coating method and connection arrangement can be customized for different soil and project conditions.
Important: The electrical resistance of a completed grounding system cannot be determined from the ground rod alone. It depends on soil resistivity, moisture, installation depth, electrode spacing, number of electrodes, connection quality and the overall grounding-grid design.
Key Features
- Solid carbon-steel rod construction
- Pointed lower end for driven installation
- T-head, plain-top and connection-lug configurations available
- Zinc-plated or hot-dip galvanized surface options
- Multiple rod diameters and lengths available
- Suitable for earthing, bonding and lightning-protection systems
- Compatible with grounding conductors, flat bars and approved clamps
- Custom hole diameter, lug position, marking and packaging available
Typical Technical Specifications
| Product Type | Galvanized Steel Ground Rod / Earth Electrode |
|---|---|
| Head Options | T-shaped head, plain round top, flattened terminal or welded connection lug |
| Base Material | Solid carbon steel |
| Representative Diameters | 12, 14, 16, 18 and 20 mm |
| Representative Lengths | 1,000, 1,200, 1,500, 1,800, 2,000, 2,500 and 3,000 mm |
| Lower End | Machined, forged or formed pointed tip |
| Connection Method | Bolted lug, grounding clamp, flat conductor or approved project-specific connector |
| Surface Finish | Zinc plated or hot-dip galvanized |
| Installation | Vertical driven or buried earth electrode |
| Application | Grounding, earthing, bonding and lightning protection |
| Customization | Diameter, length, T-head size, lug position, terminal hole, coating and packaging |
The dimensions above are representative database values. Final dimensions and tolerances must be confirmed using the approved product drawing.
Product Configurations

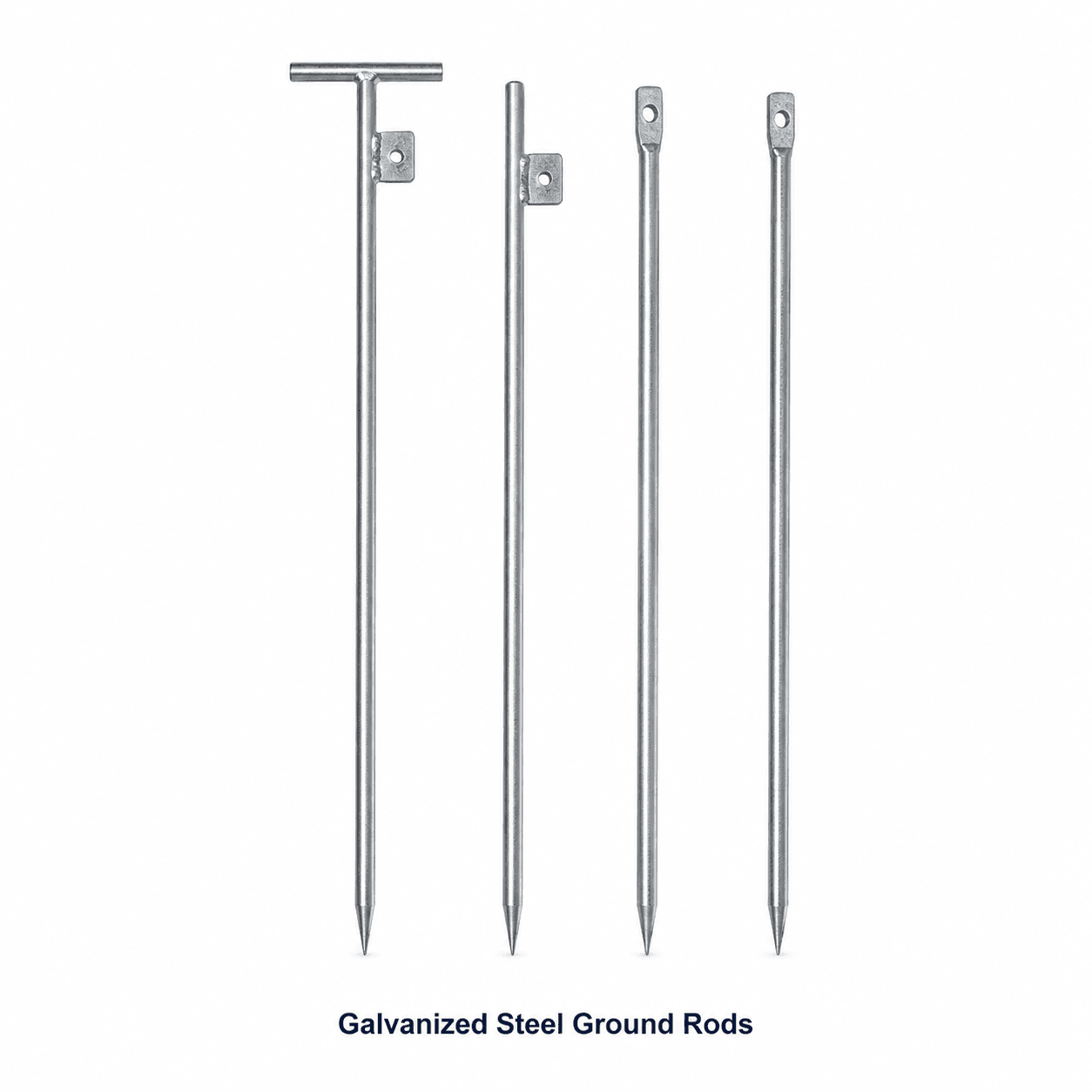

T-Head Ground Rod
The T-shaped upper section may provide an installation or connection point according to the project design. Its dimensions, welding arrangement and mechanical function must be confirmed before production.
Ground Rod with Welded Connection Lug
A welded side lug or flat terminal allows the grounding conductor to be attached using a bolt, cable lug or compatible clamp. Lug thickness, hole diameter and welding requirements can be customized.
Plain or Flattened-Top Ground Rod
Plain-top and flattened-terminal versions can be supplied for connection with project-specific grounding clamps or bonding conductors.
Materials and Construction
The main electrode is manufactured from solid carbon-steel rod. The lower end is formed into a point to improve penetration during installation. Depending on the model, the upper terminal may be formed directly from the rod or fabricated using welded steel components.
Welded connection areas should be inspected for continuity, dimensional accuracy, cracks and incomplete welds. Material grade, tensile properties and welding requirements must be stated on the approved drawing when they are critical to the project.
Surface Treatment
Zinc-Plated Finish
Zinc plating provides a smooth, bright metallic appearance and basic corrosion protection. It is more appropriate for controlled environments or projects that specify an electroplated coating. The coating thickness must be confirmed in the purchase specification.
Hot-Dip Galvanized Finish
Hot-dip galvanizing provides a thicker zinc coating and is generally preferred for buried or outdoor utility applications where increased corrosion protection is required. Hot-dip galvanized coating requirements may be specified according to ISO 1461, ASTM A123/A123M or another approved project standard.
The product image alone cannot confirm the coating process or zinc thickness. The required finish must be stated clearly in the quotation and purchase order.
Applications
- Overhead distribution-line pole grounding
- Transformer and distribution-box grounding
- Substation earthing grids
- Lightning-protection earth-termination systems
- Telecommunications towers and base stations
- Solar and renewable-energy installations
- Industrial plants and commercial buildings
- Rural electrification and grid-upgrade projects
Installation Considerations
- Measure soil resistivity and determine the required grounding-system design.
- Select the rod diameter, length, material and corrosion-protection method.
- Confirm the locations of underground cables, pipelines and other utilities before driving.
- Drive or bury the electrode to the depth shown on the approved drawing.
- Avoid excessive impact that may bend the rod or damage the zinc coating.
- Connect the grounding conductor using an approved clamp, bolted terminal or welded connection.
- Protect exposed connection areas against corrosion where required.
- Measure the completed earth resistance and verify compliance with the project requirement.
Installation must be performed by qualified personnel according to the grounding-system design, local electrical regulations and site-safety requirements.
Quality Inspection
- Raw-material and dimensional inspection
- Rod diameter, length and straightness inspection
- Pointed-tip and terminal-hole inspection
- Weld appearance and connection-strength inspection
- Zinc-coating appearance and thickness inspection when specified
- Electrical continuity inspection
- Packaging and quantity inspection
Reference Standards
- IEC 62561-2:2025 – Requirements for conductors and earth electrodes used in lightning-protection systems
- UL 467 – Grounding and bonding equipment, when a tested and listed model is required
- ISO 1461:2022 – Hot-dip galvanized coatings on fabricated iron and steel articles
- ASTM A123/A123M – Hot-dip galvanized coatings on iron and steel products
- Applicable utility drawings, grounding specifications and local electrical regulations
Reference to a standard does not constitute certification. Compliance claims must be supported by test reports or certification documents for the exact product model.
Ordering Information
Please provide the following information when requesting a quotation:
- Ground rod diameter and total length
- T-head, plain-top or connection-lug configuration
- Terminal-lug dimensions and hole diameter
- Required steel material grade
- Zinc-plated or hot-dip galvanized surface
- Required zinc-coating thickness
- Grounding conductor type and cross-sectional area
- Applicable standard and required inspection documents
- Order quantity, marking and packaging requirements
Frequently Asked Questions
Is this a copper-bonded ground rod?
No. The product shown is a galvanized steel ground rod. Copper-bonded steel ground rods use a continuous copper layer and should be listed as a separate product.
What ground resistance can one rod achieve?
A fixed resistance value cannot be guaranteed without soil and installation data. Ground resistance depends on soil resistivity, moisture, rod depth, electrode spacing and the complete grounding-system design.
Can the rod be used for lightning protection?
It may be used as part of an earth-termination system when its dimensions, material, corrosion protection, connections and test performance meet the approved lightning-protection design.
Is a hot-dip galvanized version available?
Hot-dip galvanized production can be specified. The coating standard and minimum coating requirement must be confirmed before ordering.
