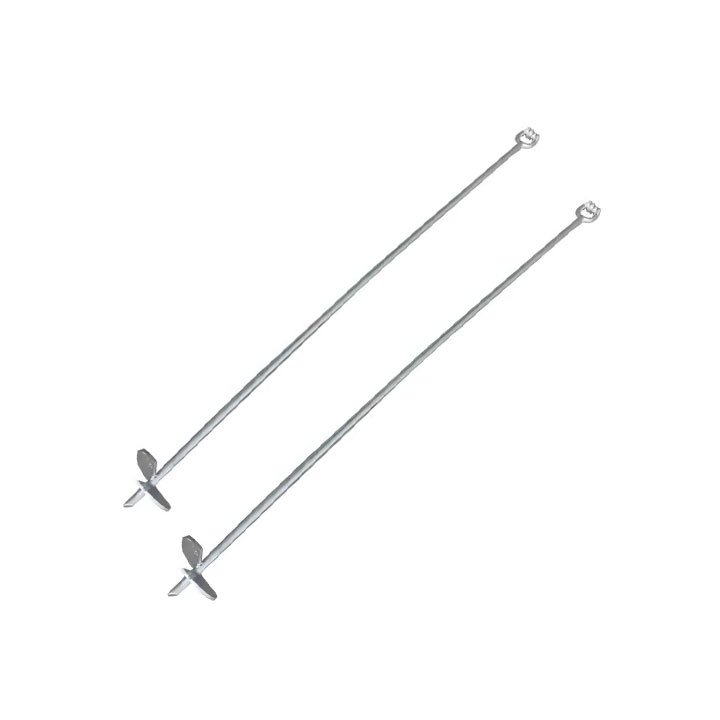

The Jiujin Helix Ground Anchor is a precision-engineered foundation solution crafted from high-grade steel and finished with a robust hot-dip galvanized coating to ensure maximum corrosion resistance and longevity. Its unique helical plate design allows for easy installation with minimal soil disturbance while providing immense holding power against uplift and lateral forces. Manufactured directly in our Hebei facility, this anchor is built to withstand the harshest environmental conditions, offering a reliable, cost-effective, and maintenance-free alternative to concrete foundations for utility pole guying and tower anchoring applications.
Varieties & Types Table
| Feature / Type | Specifications & Options Available by Jiujin Electric Power |
|---|---|
| Model/Type | HA-15, HA-20, HA-25 (Denotes shaft diameter in mm) |
| Material | High-Strength Carbon Steel (Q235B/Q345B) |
| Standard | Meets ASTM A153, IEC 61284, and relevant GB standards |
| Coating/Finish | Hot-Dip Galvanized (Standard coating thickness: ≥85µm) |
| Size / Dimensions | Various shaft lengths (1m-3m) and helix diameters (100mm-300mm) |
| Load Rating | 20 kN, 50 kN, 100 kN (varies by model and soil conditions) |
| Packaging | Bundled in steel-strapped packs or wooden crates |
Applications of Use
-
Utility Pole Guying: Primary application for anchoring guy wires supporting utility poles in electrical distribution networks
-
Tower Foundations: Providing stability for telecommunication and transmission towers
-
Slope Stabilization: Erosion control and soil retention applications
-
Retaining Wall Tiebacks: Anchoring systems for civil engineering projects
-
Solar Panel Mounting: Ground anchoring for solar farm installations
